Here are some tips to help you get started with this Turtlesim project.
You will use 3 nodes:
The turtlesim_node from the turtlesim package.
A custom node to control the turtle (named “turtle1”) which is already spawned in the turtlesim_node. This node can be called turtle_controller.
A custom node to spawn turtles on the window, and to manage which turtle is still “alive” (on the screen). This node can be called turtle_spawner.
You can create a new package (for example turtlesim_catch_them_all) to put your new nodes.
The turtle_spawner node will have to:
Call the /spawn service to create a new turtle (choose random coordinates between 0.0 and 11.0 for both x and y), and call the /kill service to remove a turtle from the screen. Both those services are already advertised by the turtlesim_node.
Publish the list of currently alive turtles with coordinates on a topic /alive_turtles.
Handle a service server to “catch” a turtle, which means to call the /kill service and remove the turtle from the array of alive turtles.
The turtle_controller node will have to:
Run a control loop (for example using a timer with a high rate) to reach a given target point. The first turtle on the screen “turtle1” will be the “master” turtle to control. To control the turtle you can subscribe to /turtle1/pose and publish to /turtle1/cmd_vel.
The control loop will use a simplified P controller.
Subscribe to the /alive_turtles topic to get all current turtles with coordinates. From that information, select a target turtle (turtle to catch).
When a turtle has been caught by the master turtle, call the service /catch_turtle advertised by the turtle_spawner node.
You will need to create some custom interfaces:
Turtle.msg and TurtleArray.msg to send the list of turtles (name + coordinates) on the /alive_turtles topic.
CatchTurtle.srv to send the name of the turtle which was caught. The client will be the turtle_controller node and the server will be the turtle_spawner node.
→ you can create messages in the my_robot_interfaces package.

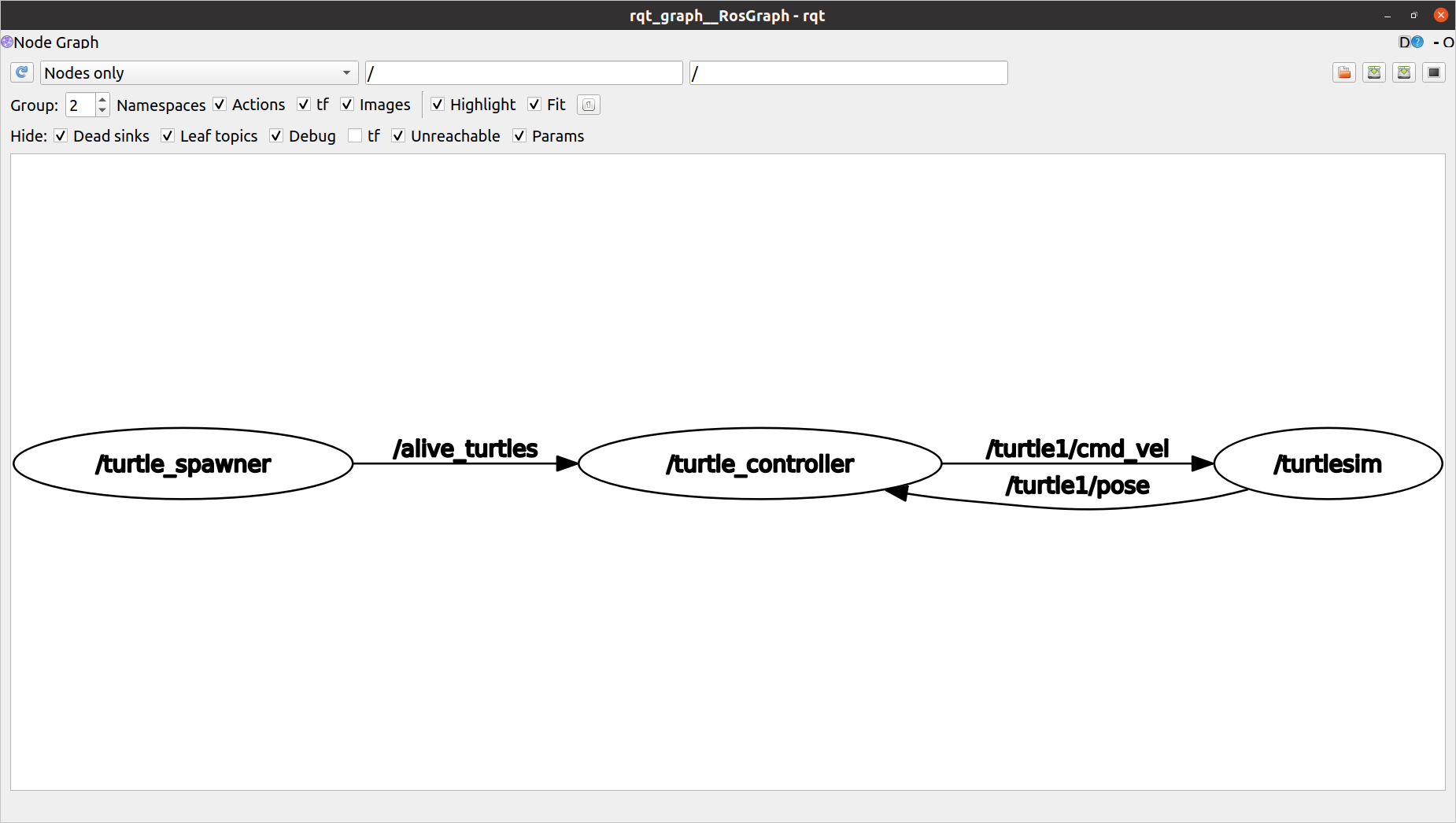

Here’s the rqt_graph with the nodes and topics:
After you’ve created that, you will be able to scale the application with parameters and launch files. This will be the focus on the last part of the solution.
Here are the parameters you can have:
/turtle_controller:
catch_closest_turtle_first
/turtle_spawner:
spawn_frequency
turtle_name_prefix
You can create the launch file (and YAML param file) inside the my_robot_bringup package. This will launch the 3 nodes along with parameters.
Steps for the solution videos:
Step 1: Create the turtle_controller node, subscribe to /turtle1/pose. Create a control loop to reach a given target (for now an arbitrary one). A little bit of math will be required to find the distances and angles. Send the command to the /turtle1/cmd_vel topic.
Step 2: Create the turtle_spawner node. With a timer, spawn a new turtle at a given rate. To spawn a turtle, call the /spawn service.
Step 3: Keep an array of alive turtles (name + coordinates) in the turtle_spawner node. Publish this array on the /alive_turtles topic. On the turtle_controller node, subscribe to the topic, get the array, and choose to select the first turtle on the array as the new target.
Step 4: Create a service /catch_turtle in turtle_spawner. Once the turtle_controller has reached a turtle, it will send the turtle name to that service. Then, from the turtle_spawner node, call the /kill service , remove the turtle from the array, and publish an updated array to /alive_turtles.
Step 5: Improve the turtle_controller to select the closest turtle instead of the first turtle on the array.
Step 6: Add parameters and create a launch file + YAML param file.
(Step 1 and Step 2 are completely independent, you can do Step 2 first if you prefer)
Alright, time for you to start working on this project!
